Multi-Cell 2S 3S 4S Li-ion Battery Charger Module – USB-C, Configurable 1A-4A

Power Your Projects: Versatile Multi-Cell Li-ion Charger Module

Elevate your DIY electronics and power projects with our advanced Multi-Cell Li-ion Battery Charger Module. Designed for ultimate flexibility, this compact board seamlessly charges 2S, 3S, and 4S Lithium-ion battery packs, including popular 18650 cells. With convenient USB-C input and configurable charging currents, it’s the essential tool for reliable, efficient battery management.

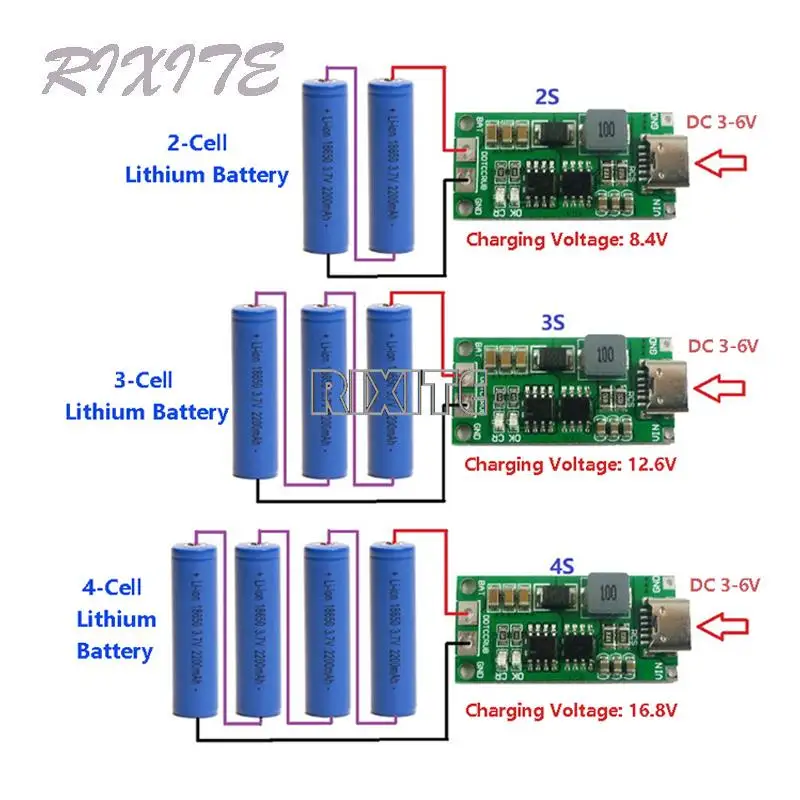

• Versatile Multi-Cell Support: Effortlessly charge 2-cell (2S), 3-cell (3S), and 4-cell (4S) Lithium-ion battery packs, including standard 18650 cells, with dedicated voltage outputs (8.4V, 12.6V, 16.8V).
• Modern USB-C Power Input: Utilize common DC 3-6V USB-C power sources (e.g., 5V USB adapters) for convenient and widely compatible charging. Direct VIN/GND pads also available.
• Configurable Charging Current: Optimize charging speed and battery longevity by easily selecting 1A, 2A, or 4A charging currents via onboard solder pads.
• Clear Status Indicators: Monitor your charging process at a glance with integrated “CR” (Charging) and “OK” (Charged/Full) LED indicators.

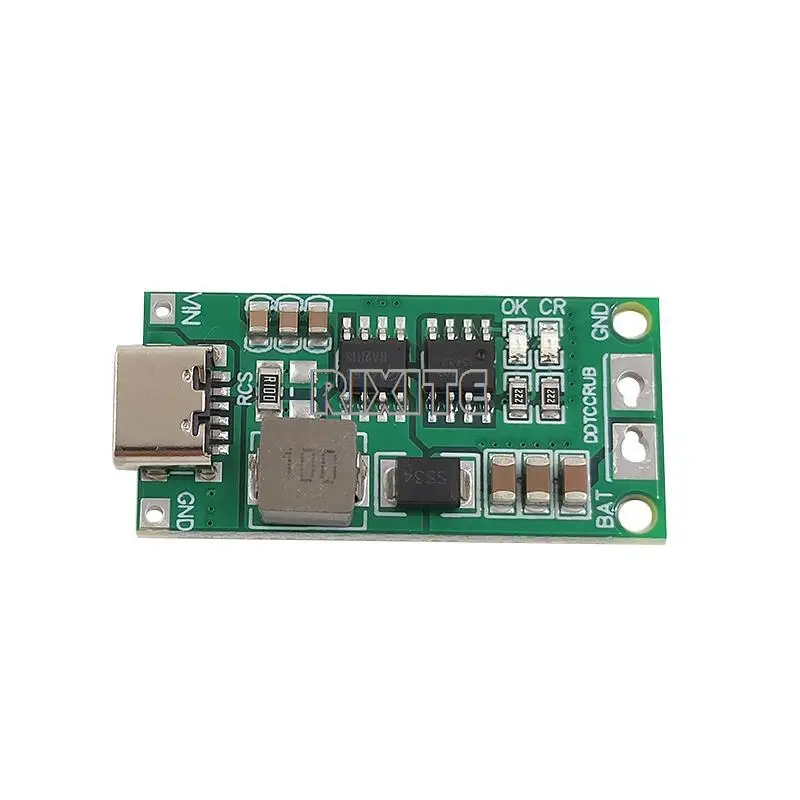

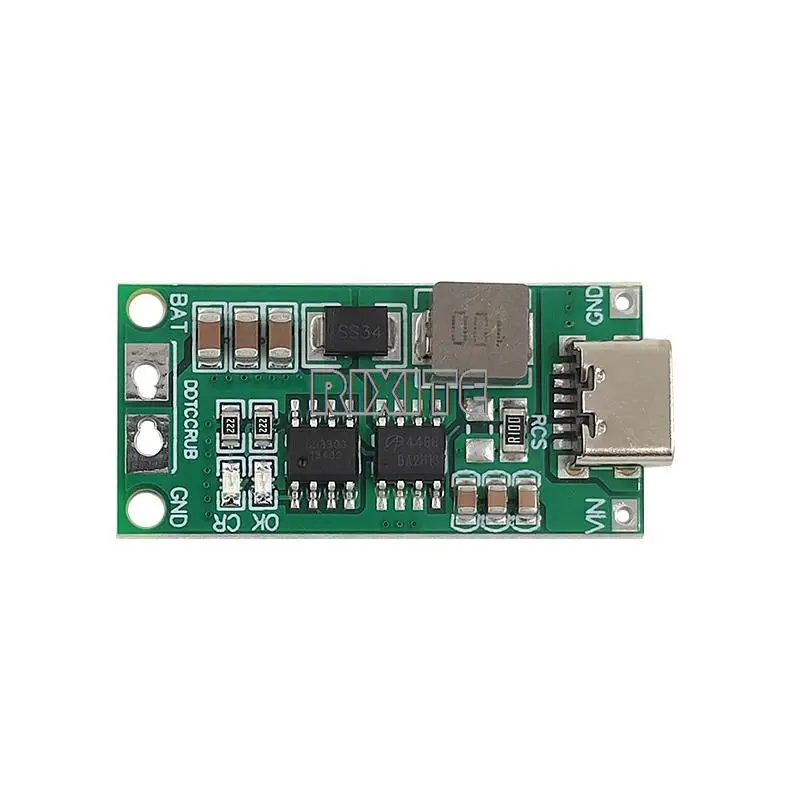

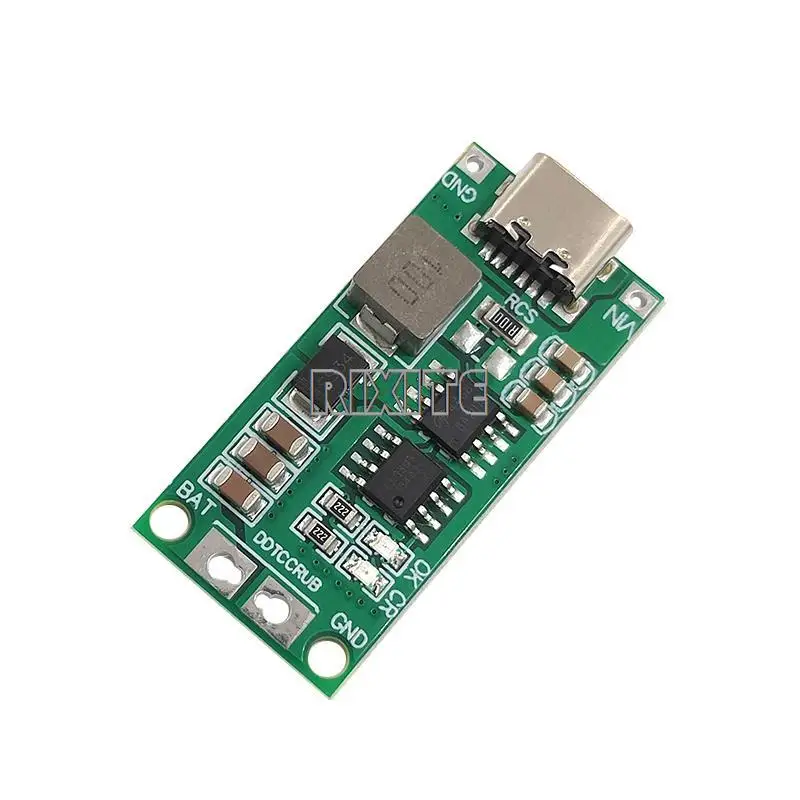

• Compact & Robust Design: Featuring a durable green PCB with clearly labeled terminals (BAT, GND, VIN) and a large “100” inductor, designed for reliable performance in your electronic projects.

Technical Specifications:

• Supported Battery Types: Lithium-ion (Li-ion), including 18650 cells
• Supported Battery Configurations: 2-Cell (2S), 3-Cell (3S), 4-Cell (4S) series packs
• Input Voltage: DC 3-6V (via USB-C port or VIN/GND pads)
• Charging Voltage (Output): 8.4V (for 2S), 12.6V (for 3S), 16.8V (for 4S)
• Configurable Charging Current: 1A, 2A, 4A
• Indicator LEDs: CR (Charging), OK (Charged)
• Connectors: USB-C input, Screw terminals (BAT, GND), Solder pads (VIN, GND)

Frequently Asked Questions

• How do I configure the module for my battery pack?

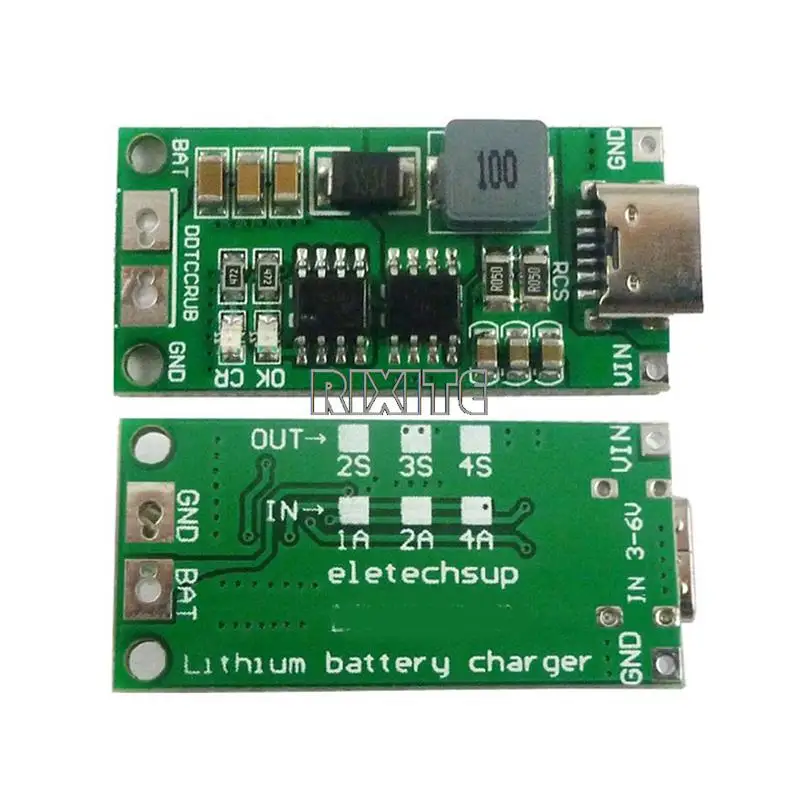

  The module features solder pads on the PCB (labeled 2S, 3S, 4S) for selecting your battery series configuration, and another set of pads (labeled 1A, 2A, 4A) for setting the desired charging current. You will need to bridge the appropriate pads with solder to match your battery requirements.
• What type of power supply is required for this charger?

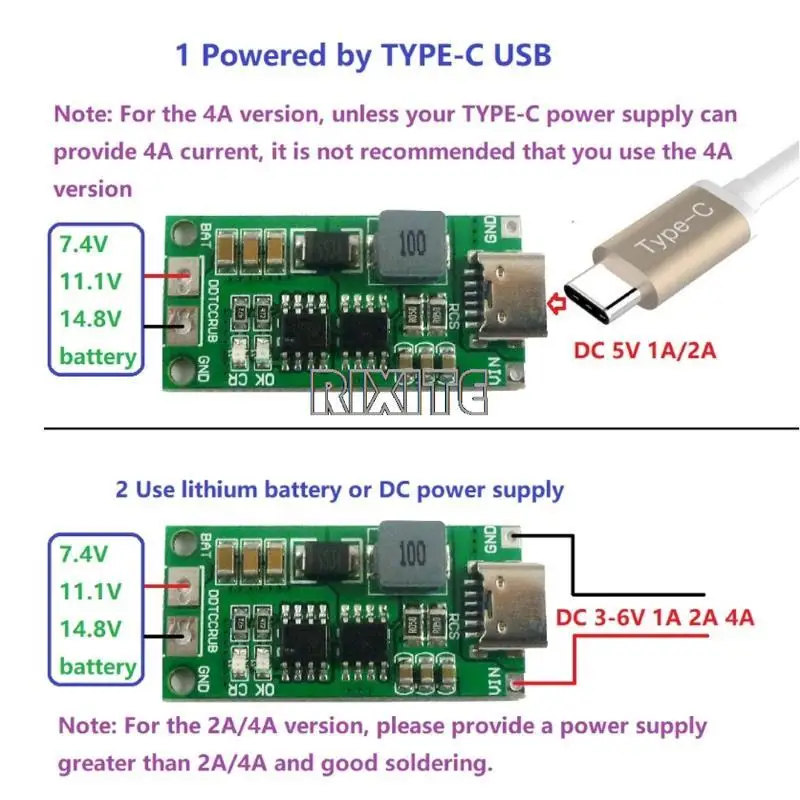

  You can power the module via its USB-C port with a DC 3-6V source, such as a standard 5V USB adapter. For the 4A charging option, ensure your power supply can provide at least 4A of current. Alternatively, you can directly wire a DC 3-6V supply to the VIN/GND pads on the board.
• Is this charger suitable for all types of Lithium batteries?
  This module is specifically designed for Lithium-ion (Li-ion) battery packs in 2S, 3S, and 4S configurations, with specific charging voltages of 8.4V, 12.6V, and 16.8V. While many LiPo batteries share similar voltage characteristics, always verify compatibility with your specific battery’s manufacturer specifications before use.
